BANTAM TYPE JACKS
PHONE: 773 792-2700
90
JACKS AND PLUGS
?
* Please visit the product pages on our website for the most up-to-date product information

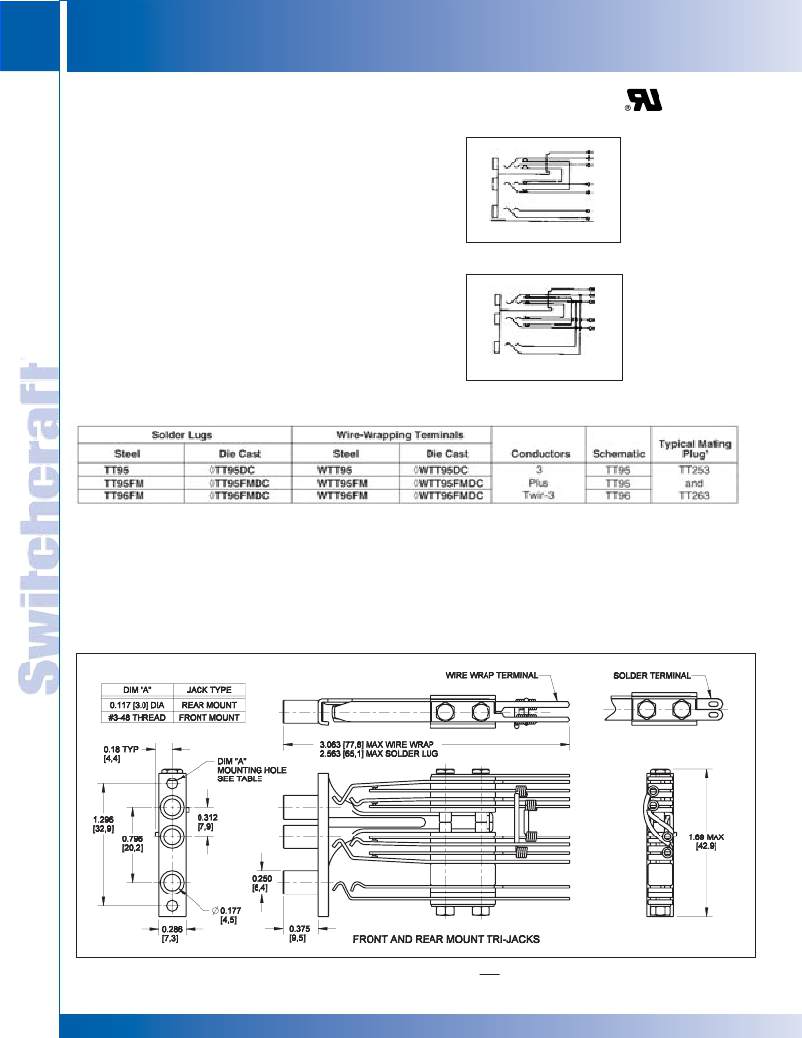

TT-JAX ? (.173") TELEPHONE TRIPLE JACKS BANTAM TYPE ?
FEATURES
? Steel or die-cast frames.
? TT95 Tri-Jax ? Jacks: three, 3-conductor jacks on one
frame. Twin jacks, (on .312" centers, LINE & EQUIPMENT
functions), have strapped shunts installed. The third jack
(MONITOR) is unwired. See TT95 schematic.
? TT96 Tri-Jax Jacks: Same as TT95 jacks, except third
jack (MONITOR) has tip and ring springs, respectively,
jumpered to tip and ring springs of top (LINE) jack.
TT95 SCHEMATIC
? Selection of solder lugs or wire-wrapping terminals.
? Palladium welded crossbar contact are standard in
switching circuits.
? TT95, TT95DC, WTT95 and WTT95DC jacks mount in
Series B1700 jack panels.
? TT95FM, TT95FMDC, TT96FM, TT96FMDC and
wire-wrapping versions mount in Series TT53, TT54,
TT57 and TT58 jack panels.
TT96 SCHEMATIC
TT95 TT95FM TT96FM
TT95DC TT95FMDC TT96FMDC
WTT95 WTT95FM WTT96FM
WTT95DC WTT95FMDC WTT96FMDC
TT253 TT263
? Special order only
SPECIFICATIONS
Frame: Plated (steel or diecast)
Stack Screws: Stainless Steel Plated.
Bushings: Plated (steel or copper alloy).
Contact Springs: Copper alloy.
Contacts: Welded crossbar palladium. Other precious metal
alloys in various sizes available on special order.
Mounting Hardware: #3-48 x 1/4" mounting screws,
P10834, can be ordered separately for rear mount jacks.
Two mounting screws, P25424, are supplied with front
mount jacks.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
